Description
Applications：

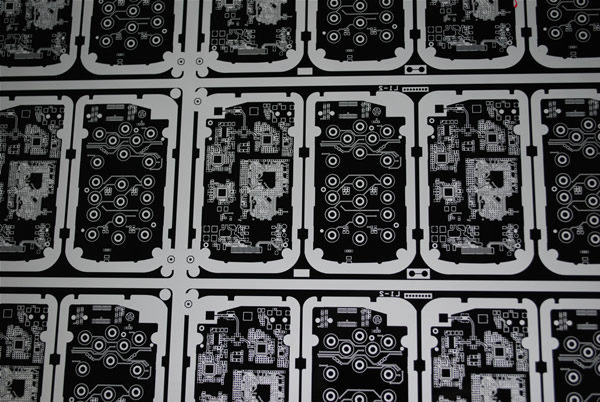

The product is mainly used in PCB,IC substrate and IC substrate and IC Lead Frame,etc.
Specifications (Standard Size:430mmx430mm)
| Min.Line/Space Width | 20μm/20μm |
| CD Control | ±2.0μm |
| Total Pitch Accuracy | ±5.0μm |
| Registration Accuracy | ±4.0μm |
| Overlay Accuracy | 4.0μm |
| Orthogonality | 4.0μrad |
Substrate
| Material | Soda Lime Glass |
| Max. Size | 24″×32″ |
| Normal Size | 5″x5″,20″x24″,22″x26″,24″x28″ |
| Thickness | 5.0mm±0.2mm |
| Film Type | Emulsion |
| Optical Density(λ=450nm) | ≥3.6 |
